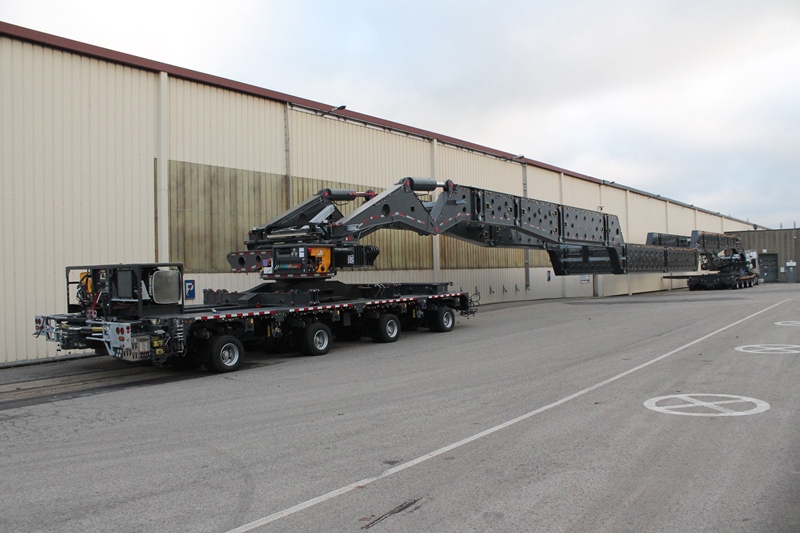

The GirderMAX from Faymonville is a girder bridge to transport super heavy loads at legal axle loads on public roads. This huge beam system is suitable for the transport of transformers, gas turbines, generators or any other bulky and heavy load. Starting from a payload of 330,000 to 550,000 lbs., this heavy haul transport system can combine with all modular platform trailers from Faymonville – DualMAX, ModulMAX or CombiMAX.
With its couple of able beams, the length of the girder bridge is easily adaptable to the load and to the number of required axle lines. The two sets of main beams with an individual length of approx. 26’ can be used as overhead suspension beams with load supporting elements or, in combination with the so called Z-beams, in a lowered position especially designed for gas-turbine and generator transports. The whole system can be hydraulically lifted by 6’-6” and the patented widening system can change the width within seconds from approx. 9’ to 26’!
The GirderMAX is designed for 2×12 dual lane trailers in West Coast design, nevertheless the total length can be adapted to less axle lines. The GirderMAX permits ideal transport circumstances thanks to a cross pendulum stabilisation and a self-tracking device for the steering system of the rear trailer. The set-up comes with a pile of useful accessories like empty-run supports, load securing devices, parking supports, Hatz-Diesel engines on both sides and wireless remote controls for all hydraulic functions.
