Tenneco Inc. is displaying its latest Clean Air and Ride Performance solutions that reduce emissions, contribute to improved fuel consumption and improve vehicle performance at the 2016 IAA Commercial Vehicle Show, at Hall 16, Stand C10.
“Tenneco’s portfolio of Clean Air and Ride Performance technologies are production-ready and meet the needs of our commercial vehicle customers anywhere in the world. From diesel after-treatment solutions designed to meet stringent emission regulations to complete ride control systems and NVH solutions for a superior operator driving experience, Tenneco delivers commercial vehicle systems that are cleaner, quieter, and smoother” said Tim Jackson, Chief Technology Officer, Tenneco.
Clean Air
XNOx™ Urea Selective Catalytic Reduction (SCR). Tenneco’s latest evolution of its XNOx urea dosing system offers expanded thermal range, so that the system can be placed closer to the turbocharger without compromising dosing quality and performance. The return flow design provides superior thermal tolerance without added complexity. Other enhancements include an optional controller, which features a flexible engine interface design and can predict engine-out NOx and account for ammonia storage and catalyst degradation. Tenneco’s patented injector, specifically designed for exhaust systems, delivers an optimized solution, enabling greater than 95 percent NOx conversion efficiency, helping customers to meet stringent emissions standards while delivering engine performance.
Advanced Mixing Technologies. Tenneco’s custom-engineered mixing components ensure consistent mixing of liquid urea and optimized performance of the selective catalytic reduction (SCR) aftertreatment in diesel engine exhaust systems. The company is showcasing its latest family of mixing solutions designed to efficiently process the injected DEF into gaseous ammonia without the formation of undesired deposits, even at low engine loads. This strategy supports meeting extreme NOx efficiency requirements for low or non-EGR calibrations as well as emission targets under real field operations. A key functional component is Tenneco’s patented Swirl Pipe Mixer, which can be incorporated into Tenneco’s Euro VI box solution, integrated into outlet cones or applied as a stand-alone mixing unit into Tenneco’s MixBox.

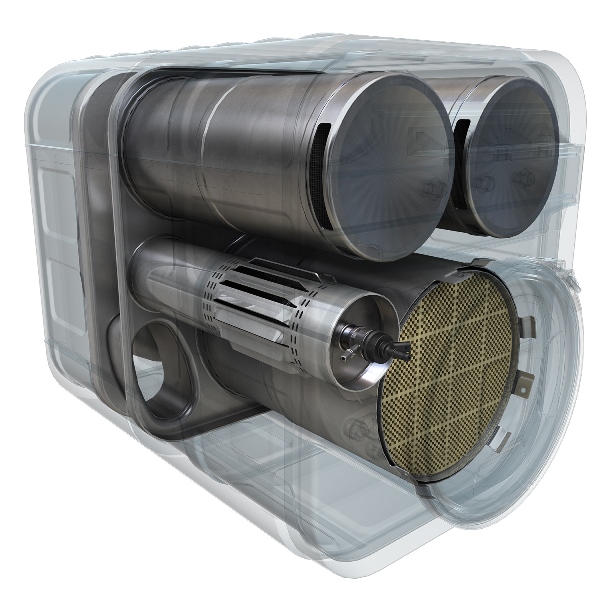

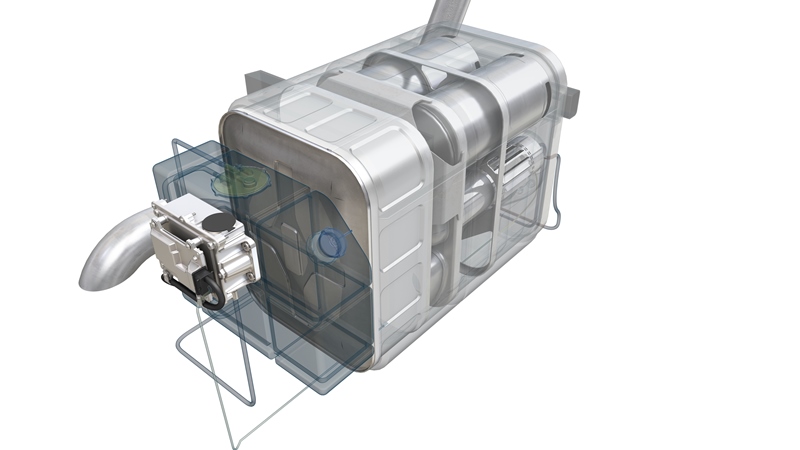

Euro VI Plus Concept Box. In compliance with current Euro VI regulations for on-road trucks, Tenneco has developed a compact and modular one-box solution that includes all required exhaust after-treatment components, such as DOC, DPF and SCR converters as well as the company’s proprietary advanced mixing technology. The concept box also features advanced technologies designed to support further reductions in NOx emissions and In-Service Conformity (ISC) requirements, including thermal management solutions such as lightweight fabricated manifolds and active heaters to support low temperature NOx efficiency. Another important focus for the commercial vehicle market, driven by total cost of ownership and CO2 legislation, is waste heat recovery. Tenneco is developing solutions to provide or integrate heat exchangers into the Euro VI box as a key component of Rankine cycle-based systems that convert wasted exhaust heat into mechanical power.
Ride Performance
CVSAe is part of Tenneco’s Monroe Intelligent Suspension portfolio and is a semi-active suspension system that helps improve driving safety, protect freight and reduce tire wear on light commercial vehicles. The system continuously adjusts shock absorber damping levels to road conditions and vehicle dynamics like speed, turning, cornering and driver inputs to deliver optimal ride comfort and vehicle control in all road and driving situations. The driver can also select between a more comfortable or more dynamic driving style.
Position-Sensitive Twin System (PST) is a multi-stage hydraulic shock absorber that provides different levels of damping based on the position of the pistons within the shock absorber pressure tube. The PST’s design enables a wide range of tuning parameters. Almost any desired damping curve can be obtained while avoiding sudden transitions in performance between soft and hard damping modes. PST allows the choice of different damping forces for rebound and compression. This high degree of tuneability is critical for OEMs who desire specific ride characteristics.
45mm Axle Dampers are used primarily as rear axle dampers for vehicles with a gross vehicle weight (GVW) greater than 15 tons and on trailers. A new valve system provides increased tuneability and allows higher compression damping force while maintaining the lifetime performance typical of Tenneco dampers. Tenneco also offers 35mm axle dampers, generally used as front dampers for vehicles with a GVW between six and 15 tons.
Cabin Suspension systems include Coil Spring Cabin Dampers, Air Spring Cabin Dampers and Lateral Cabin Dampers. Coil Spring over Shock (CSOS) and Air Spring over Shock (ASOS) cabin suspensions differ in terms of the natural frequency of the mass-spring system to provide optimized robustness and comfort. Lateral Dampers provide high damping at low piston speeds to keep the swing movements of the cab under control. Integrated Height Valve (IHV) is an internal valve within the air spring damper module for cabin leveling which reduces assembly complexity, time and cost. This modular solution can be adapted to customer-specific needs and doesn’t require any additional external links or connections.
Adjustable Seat Dampers are optimized for the very low seat movement and allow the driver to choose the optimum setting adapted to his weight and driving preferences.
Elastomers
Lightweight Torque Rods deliver high performance and fatigue life while minimizing vehicle mass. Tenneco’s innovative rod designs help customers to meet performance targets with simple, low mass solutions. Multiple construction options are available.
Innovative Spring Eye Bushings are part of Tenneco’s Clevite® Elastomers brand, which has been manufacturing elastomer suspension bushings continuously since 1947. Spring eye bushings serve as key pivots in vehicles with leaf spring suspensions, and new designs that reduce mass while improving bushing function and fatigue life are currently in validation. High radial and conical spring rate are paired with low torsional breakaway to produce pivots ideally suited for optimal suspension performance.
Tenneco’s combustion and thermal management technologies designed to meet the increasing regulatory requirements for India and China.
“Global regulations have evolved and continue to increase in complexity throughout the world. Tenneco has a suite of solutions ready to support the drive for increased requirements throughout Europe and Asia Pacific. For example, our solutions in India are now being tailored for a market that will soon adopt Euro VI requirements, while in China, we continue to design country specific solutions at our engineering center in Kunshan that leverage our global technology to meet local challenges” said Mr. Jackson.
With the number of motor vehicles in India expected to double in the next decade, the country has announced plans to leapfrog the BS V regulations and implement BS VI in 2020 (equivalent to the latest Euro VI level standards). By doing so, the particulate matter and nitrogen oxide (NOx) levels of commercial vehicles will be reduced by as much as 87% and 82%, respectively. In China, National Standard V and VI emission regulations for commercial vehicles are driving the need for solutions to support the reduction of NOx, hydrocarbons and particulate matter, with NS VI expected to be in place within the next 3-5 years.
Particle Number (PN) requirements in the Bharat Stage VI and NS VI regulations are expected to drive a significant increase in the use of diesel and gasoline particulate filters and more stringent emission test cycles, and portable emissions measurements (PEMs) in-use compliance requirements will help to ensure light and heavy-duty vehicles remain compliant on the road in both countries. Tenneco’s global experience and manufacturing capabilities are ideally suited to support motor vehicle manufacturers as they address the rigorous challenges that, markets such as India and China, represent.
Clean Air Solutions
Close-Coupled Converter. Tenneco’s close-coupled converter manifold features a compact design, air gap insulated inlet and outlet cone, and is designed to effectively improve thermal management in the exhaust system and provide faster light-off.
Air Gap Pipe. Optimizing the temperature throughout an exhaust system can improve the performance of the catalytic converts and other emission control technologies. Tenneco’s air gap pipe is a double-walled exhaust pipe with an “air gap” between layers of pipe to promote insulation and allow faster converter light-off for reduced emissions.
Modular Manifold. Tenneco produces single wall manifolds as well as double-wall air gap insulated manifolds. These provide significant advantages in terms of emissions reduction, weight, cost, durability and packaging when compared with cast manifolds. Modular manifolds have a simplistic design, which allows many applications to be covered by a few components.
Global Engineering and Manufacturing
In recent years, Tenneco has expanded its Clean Air manufacturing and engineering operations, including an expanded technical center in Yokohama, Japan, a new R&D facility supporting China-specific solutions in Kunshan, China and an engineering center in Chakan, India, all of which support growing number of commercial truck engine programs throughout the world.
“As we navigate the changing landscape of regulatory requirements, we must continue to actively invest in building our capabilities to engineer and produce cost-competitive, cutting-edge products that support regulations anywhere in the world. For example, we recently expanded our engineering facility in Chakan and are planning for significant additional investment there in upgrading and expanding our manufacturing and engineering facilities by 2020 to meet demand growth for upcoming BS VI norms” said Jackson.
